- Excellent illumination with build-in high power LED
- Extremely long lamp usage time
- High efficiency, up to 40% energy saving
- Exterior uses, for installation on bracket arm
- Non-corrodible aluminum body
- Epoxy-polyester powder coating
- Hingeable clear Acrylic diffuser
|

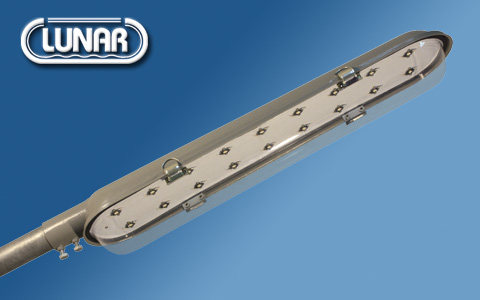

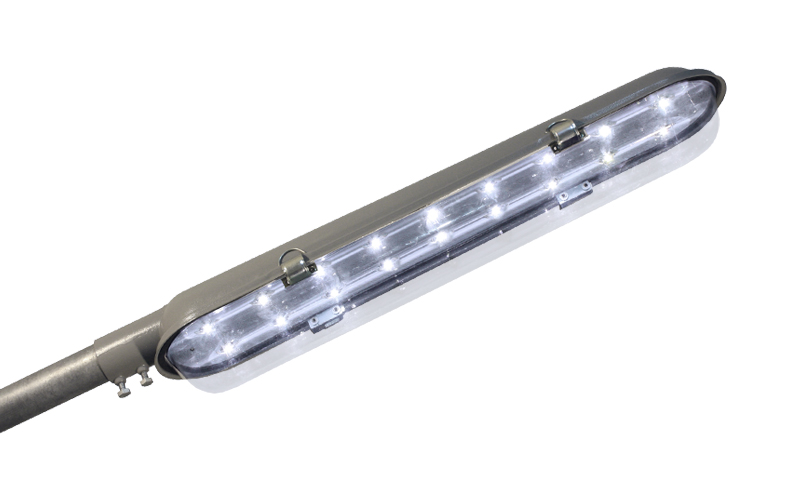

| Street Lighting, Equipped with High Power LED Lamp |
 |
LED Lamp
- Super high bright LED lamp
- High flux output; typical 90 lumens
- Extra long life.
- Low thermal resistance
- Operating Temp -40°C to 100°C
- Environmental friendly; RoHS compliance.
|
  |
|
Model
|
Input
|
Lamp
|
W (mm)
|
H (mm)
|
L (mm)
|
Lighting rod size
|
SC550/12DC
|
DC12V
|
12x1w
|
180
|
130
|
740
|
Ø 48mm (1.5”)
|
SC550/12AC
|
AC220V
|
12x1w
|
180
|
130
|
740
|
Ø 48mm (1.5”)
|
SC550/15DC
|
DC12V
|
15x1w
|
180
|
130
|
740
|
Ø 48mm (1.5”)
|
SC550/15AC
|
AC220V
|
15x1w
|
180
|
130
|
740
|
Ø 48mm (1.5”)
|
SC550/18DC
|
DC12V
|
18x1w
|
180
|
130
|
740
|
Ø 48mm (1.5”)
|
SC550/18AC
|
AC220V
|
18x1w
|
180
|
130
|
740
|
Ø 48mm (1.5”)
|
|
